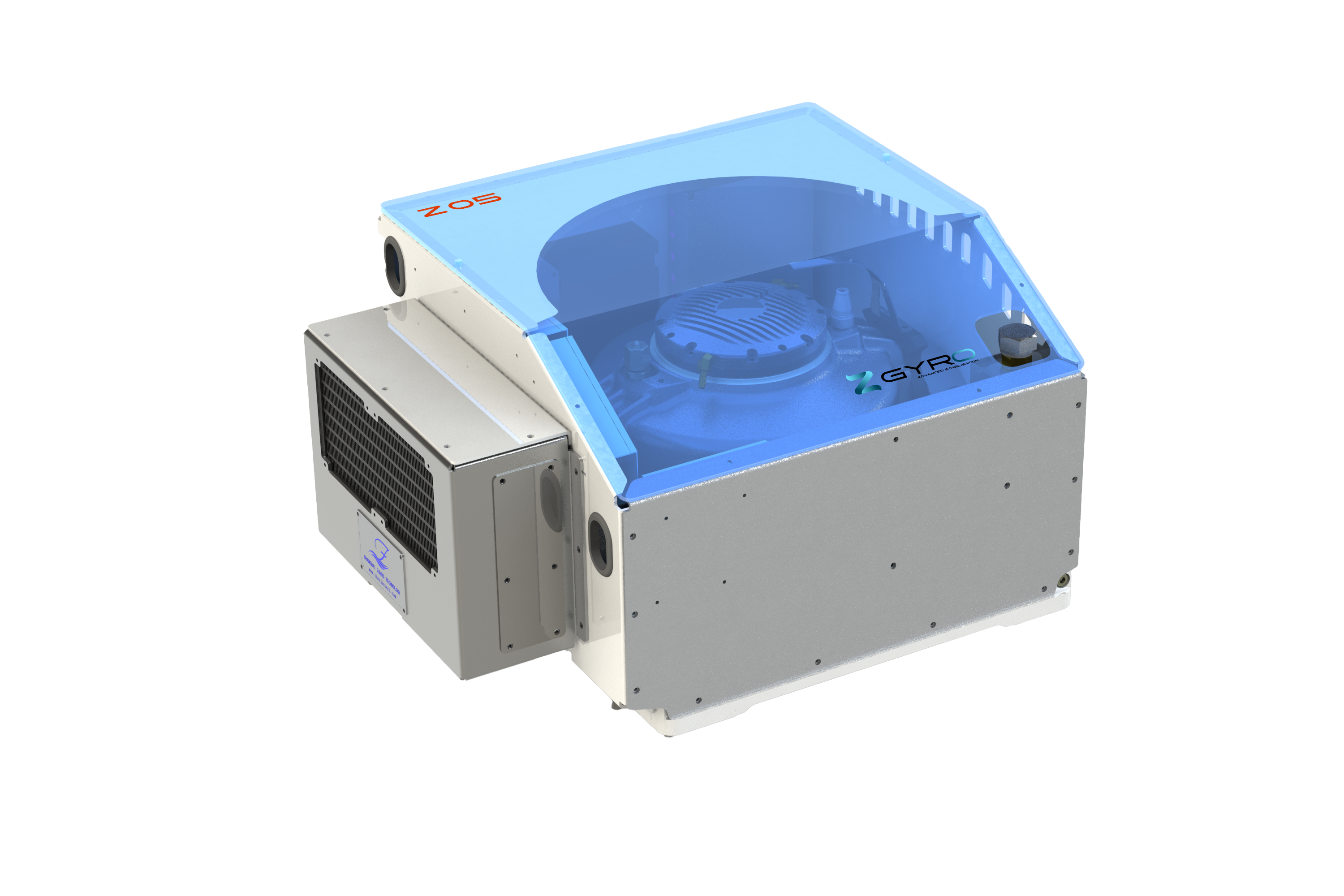

ZJ50
SIZE DOES MATTER
WHICH MODEL SIZE IS RIGHT FOR YOU?
No one knows more about how you boat than you! Please contact us and we will guide you to choose the right model for you!
SIZE DOES MATTER
Stabilization for Small Boats
Exceptional Stabilization Performance
It detects boat posture and adaptively controls it. This ensures superior stabilization in unpredictable waves, reduce up to 96% of the boat roll.
Innovative Architecture
Our patented mechatronic torque control system is hydraulic components-free, known for its robustness and durability. it minimizes failures and offers easy maintenance.
Advanced Triple Buffer Protection
Combining mechanical, electromagnetic and electronic buffering, the system is designed to withstand impacts, ensuring reliability even in the most challenging sea conditions. This design is also protected by multiple patents.
View our product details
Weight
Dimensions
2580KGS
1250*1600*1440mm
Gyro System
This includes the flywheel and its base. The flywheel, placed vertically in a sealed casing, connects to the base via a side shaft and bearings. lts high-speed rotational movement produces anti-roll torque during procession, which helps reduce ship sway.
Drive System
Consisting of a servo motor and a servo motor controller, the servo motor adopts a frame-less structure and directly drives the flywheel shaft, ensuring high transmission efficiency while also having the advantage of a compact structure.
Cooling System
Featuring a water tank, cooler, water pump, piping, and antifreeze, this system uses the cooler to exchange heat with seawater, subsequently cooling critical components like bearings, motors, and electronic controls.
Detailed parameters
| Model | ZJ50 |
|---|---|
| Applicable Boat Range | Full Load Displacement≤135Tons |
| Rated RPM | 2850 rpm |
| Angular Momentum | 50 kNms |
| Anti-rolling Torque | 150 kNm |
| Time to Rated RPM | 40 min |
| Time to Stablization | 20 min |
| Start-up Power | 0.4～15 kW |
| Operating Power | 8～13 kW |
| Power Input | 3PH AC380V 15 kW |
| Weight | 2580KGS |
| Overall Size (L*W*H) | 1250*1600*1440mm |
| Installation Space (L*W*H) | 1450*2400*1540 mm |
| Cooling Method | Raw Water-cooled 15L/min |
| Ambient Temperature | -20℃～60℃ |
| Noise Output @ 1 meter | ≤73 dB |
| Protection Rating | IP65 |
| Control Panel | 5-inch Touch Screen |
